A little timer app
Lua Carousel » Devlog

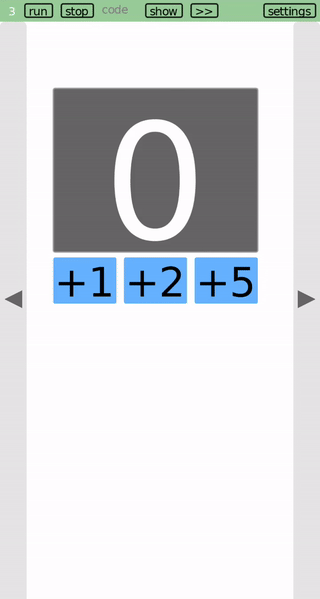

A friend was looking for a timer app, and I took the opportunity to also package up my little helper for managing GUI widgets that I've shown before (1, 2, 3). I also added support for long-press, which allows for a clean UI: tap on the timer to pause, long-press on the timer to stop.
Step 1: run the screen of abbreviations that comes with Lua Carousel:
-- Some abbreviations to reduce typing. g = love.graphics pt, line = g.points, g.line rect, poly = g.rectangle, g.polygon circle, arc, ellipse = g.circle, g.arc, g.ellipse color = g.setColor min, max = math.min, math.max floor, ceil = math.floor, math.ceil abs, rand = math.abs, math.random pi, cos, sin = math.pi, math.cos, math.sin touches = love.touch.getTouches touch = love.touch.getPosition audio = love.audio.newSource -- Hit 'run', Now they're available to other -- panes.
Step 2: Copy this into a screen and save it as 'widgets'
-- helper screen for creating UI widgets on screen widgets = {} long_press_duration = 1 function widgets.__draw() for name,w in pairs(widgets) do if name:find('__') == nil and w.draw then w.draw() end end end function widgets.__mousepressed(x,y, b) for name,w in pairs(widgets) do if name:find('__') == nil then if w.ispress(x,y) then return w.press() end end end end function widgets.__update(dt) local x, y = App.mouse_x(), App.mouse_y() local mouse_down = App.mouse_down(1) for name,w in pairs(widgets) do if name:find('__') == nil then if w.update then w.update(dt, x,y) end if w.long_press then if mouse_down and w.ispress(x,y) then if w.press_time == nil then w.press_time = 0 else w.press_time = w.press_time+dt if w.press_time > long_press_duration then w.long_press() w.press_time = nil end end else w.press_time = nil end end end end end function widgets.__mousereleased(x,y, b) for name,w in pairs(widgets) do if name:find('__') == nil and w.release then w.release() end end end
Step 3: Create a third screen for the timer itself.
run_screen('widgets') timer_x, timer_y = 60, 100 timer_font_height = min(App.screen.width, App.screen.height)/2 timer_font = g.newFont(timer_font_height) timer_width = timer_font:getWidth('60') button_font_height = timer_font_height/4 button_font = g.newFont(button_font_height) time = 0 state = 'stop' function main_button() local x,y, w,h = timer_x, timer_y, timer_width, timer_font_height+4 local press_time = nil local draw = function() if state == 'paused' then color(0.8,0.4,0) else color(0.4,0.4,0.4) end rect('fill', x,y, w,h, 2,2) color(0.6,0.6,0.6) rect('line', x,y, w,h, 2,2) color(1,1,1) local t = math.ceil(time) g.setFont(timer_font) g.print(t, x+(timer_width-timer_font:getWidth(tostring(t)))/2, y+2) end local ispress = function(x2,y2) return x2 >= x and x2 <= x+w and y2 >= y and y2 <= y+h end local press = function() if state == 'paused' then state = 'run' else state = 'paused' end end local long_press = function() state = 'stop' time = 0 end local update = function(dt, x,y) if state == 'run' then if time > 0 then time = time - dt else time = 0 end end end return {draw=draw, update=update, ispress=ispress, press=press, long_press=long_press} end widgets.main = main_button() function timer_button(offset, y, x, align) local title = '+'..tostring(offset) local w = button_font:getWidth(title)+4 if align == 'center' then x = x - w/2 elseif align == 'right' then x = x - w end local h = button_font:getHeight() local draw = function() color(0.4,0.7,1) rect('fill', x,y, w,h, 2,2) color(0,0,0) g.setFont(button_font) g.print(title, x+2, y+2) end local ispress = function(x2,y2) return x2 >= x and x2 <= x+w and y2 >= y and y2 <= y+h end local press = function() time = time + offset state = 'run' end return {draw=draw, ispress=ispress, press=press} end local buttony = timer_y+timer_font_height+10 widgets.plus1 = timer_button(1, buttony, timer_x, 'left') widgets.plus2 = timer_button(2, buttony, timer_x+timer_width/2, 'center') widgets.plus5 = timer_button(5, buttony, timer_x+timer_width, 'right') function car.draw() widgets.__draw() end function car.mousepressed(x,y, b) widgets.__mousepressed(x,y, b) end function car.update(dt) widgets.__update(dt) end function car.mousereleased(x,y, b) widgets.__mousereleased(x,y, b) end
You need the last dozen or so lines to use the widget screen because each screen gets independent car.* handlers.
